Fetching Board-Level Thresholds (Min, Max, Target) for Sprint-Level Metrics

Questions & Answers
, ,
1

Hello,

We are trying to set up a scorecard structure for our teams. As seen in the attached image, each Board ID represents a specific team, and the scorecard consists of Themes, Objectives, and Metrics with their respective Weight, Minimum Target (TMIN), Target (TTGT), and Maximum Target (TMAX) values for that team.

I have tried several ways to import this data (e.g., importing as measures, using properties, mapping at different levels), but I haven’t been able to solve the following issue:

Since calculations will be made at the Sprint level, I need to retrieve the threshold values (Weight, Min, Max) for the corresponding metric (e.g., Velocity TVC+) based on the Board ID.

My intended approach is to reference the Board level from Sprint and fetch the Weight, Min, Max values for the corresponding Metric in that Board. However, I haven’t been able to properly implement this in eazyBI.

Could you guide me on how to model this correctly in eazyBI?

image1275×327 23.4 KB

Velocity TVC+ for TTGT

CASE
  WHEN [Sprint].CurrentHierarchyMember.get("Metric Name") = "Velocity TVC+"
  THEN [Sprint].CurrentHierarchyMember.Parent.get("TTGT")
  ELSE NULL
END

sample score card

IIF(
  IsEmpty([Measures].[Velocity]),
  NULL,
  -- If Current Velocity is greater than the Max,
  IIF(
    [Measures].[Velocity] > [Measures].[Max - Velocity],
    5,

    -- If Current Velocity is between Target and Max:
    IIF(
      [Measures].[Velocity] >= [Measures].[Target - Velocity],
      3 +
      (
        ([Measures].[Velocity] - [Measures].[Target - Velocity]) * 2
        /
        ([Measures].[Max - Velocity] - [Measures].[Target - Velocity])
      ),

      -- If Current Velocity is between Min and Target:
      IIF(
        [Measures].[Velocity] > [Measures].[Min - Velocity],
        1 +
        (
          ([Measures].[Velocity] - [Measures].[Min - Velocity]) * 2
          /
          ([Measures].[Target - Velocity] - [Measures].[Min - Velocity])
        ),
        -- If Current Velocity is less than or equal to Min:
        1
      )
    )
  )
)
2

Hi,

There are limitations to the import of such data sheet into eazyBI and join it with the existing data from Jira Issues data cube. It is possible to map the external data to standard data cube dimensions as properties, but that allows adding one value for each dimension member.

So, we cannot relate multiple Objectives and Metric names to sprint boards. You may need to consider importing these values in a custom data cube and try combining reports from different data cubes in one dashboards.

Please, reach out us through the support email if you have further questions.

Kindly,
Janis, eazyBI support

1 Like
3

Thank you som much @janis.plume

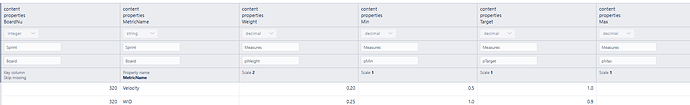

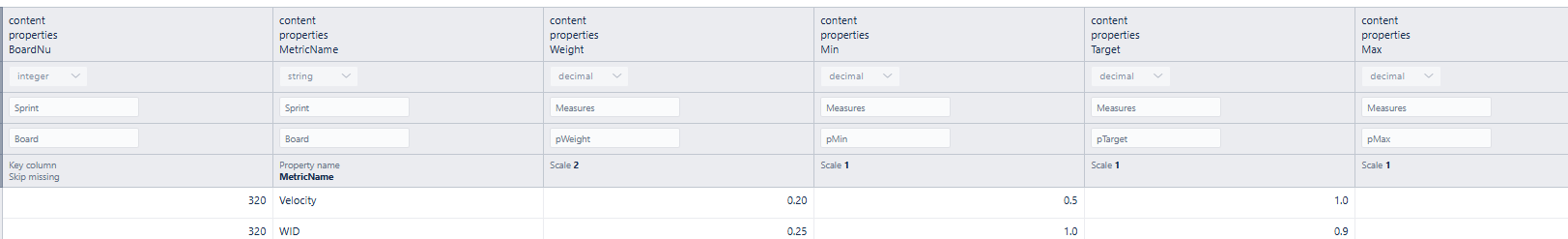

Based on this table structure, where Metric Name (e.g., “WID”) is a property, and Min, Target, and Max are measures, can we retrieve the Min value for a specific metric (e.g., “WID”) at the Board or Sprint level?

If not, what would be the correct approach ?

image1623×247 12.6 KB
