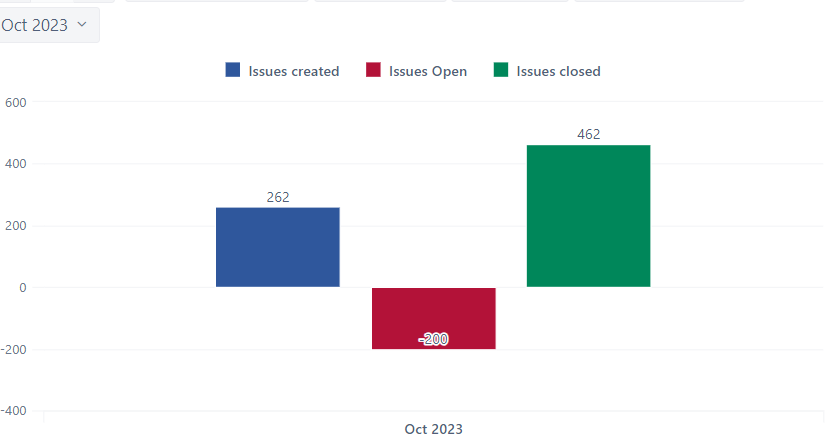

I have created a graphical representation. of Jira tickets created, open and closed. but in report in Oct month, we created 262 tickets but in Open issues it shows -200 and in closed Issues it shows 462 tickets.
- why I am getting negative value and how can I make it to positive value and also when I drill through the issues it showing closed tickets not opened tickets.
- I want to get the data of only that particular month in October it should show only Oct month created tickets and Open and closed. It should not show previous month created tickets closed in this month.
Could you please post image that shows more of report definition (what is in pages, rows and columns and preferably results in table format)?
Hi, could you paste calculation (formula) for “Issues Open” ?
It seems to be user defined measure.
Hi, Formula for Issues Open
It looks like in your report, “Issues Open” is calculated by the formula = “Issues created” - “Issues closed”.
This can give negative results if more issues are closed than are created, because:
- “Issues created” - A total number of created issues in the specified time period (issue created date is in the selected time period).
- “Issues closed” - A total number of closed issues in the specified time period (issue closed date is in the selected time period, but they can be created anytime before)
More about measures can be found here: Jira Core measures and dimensions
However, to get the total number of issues that are created and closed in the same month, you can create a new measure and use this formula:
-- iterate through a set of issues
-- apply filter criteria to each issue
[Measures].[Issue created date],
[Time].CurrentHierarchyMember ) AND
[Measures].[Issue closed date],
-- numeric expression - sum of relevant issues
I hope this helps,
But if you see the table in the screenshot when sum each month value with total value it is not matching for Issues Open and Closed.
And also, I need help with how I can convert Issues created, issues Open, Issues closed values to Percentage in Bar representation.? please help me on that as well.
Could you please post formula for calculations [Issue Open] and [Closed Issues]?
Value of All Times depends on the formula that is used (it could be that one issue is counted in several years, but in All Times it will be counted only once).
Formula for Closed Issues:
–create a set of issues from selected projects only
–create set of projects selected in pages
–creae set of issues in selected projects
–retrieve project level from issue hierarchy bsed on selected project
–level of memberrs for the set
–primary filter - issue was creared in the selected period
[Measures].[Issue created date],
–numeric value for sum - the issue was closed withn the selected period
Formula for Issue Open:
[Measures].[Issues created] - [Measures].[Closed Issues]
This expression looks for the issues that are created and closed within the same Time dimension member. The Time dimension member “All Times” is a valid member, and the calculation is done with that member instead of summing up issues created and closed within the same month or year.
Meaning, you currently have already closed 17264 issues and only have 1326 open, although only 15298 were closed in the creation year.
You might hide the “All Times” by selecting the “Year” level from the Time dimension “All hierarchy level members” section.
