Total of Descendants in Collapsed/Expanded view

[cybertachikoma]

Hi,
let me descride a a data for question:

1. I have a sturcture of linked Members

In table Collapsed view it looks like this:

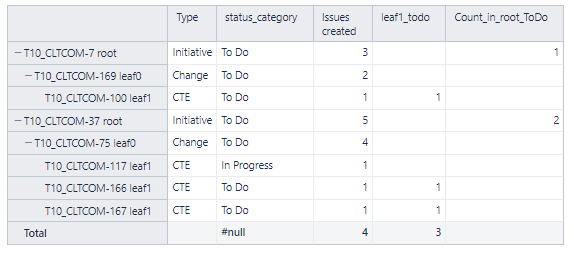

In table Expanded view it looks like this:

Next,

I’ve added Calculated measure “leaf_todo”, which finds issues with “Issue type: CTE + Status Category: Yo Do” and draws “1” if it’s true
In Total there’s right sum : 3 issues

Next,
I’ve added Calculated measure Count_in_root_ToDo which draws the Sum of all “leaf_todo” in root of structure row.

We can see that the Sum is right , there’re (2+1) issues
but it’s not drawn it Total row…
In collapsed view Total works good

My question is how to draw Total for that Calculaded measure column in expanded view?

*in first comment I’ve added code for used elements

[cybertachikoma]

Code for MembersHierarchy in Settings

[jira.customfield_init]
name = "INIT"
inward_link = "is contained in"
issue_type = "Initiative"
update_from_issue_key = "customfield_change"
dimension = true

[jira.customfield_change]
name = "CHANGE"
inward_link = "is contained in"
issue_type = "Change"
update_from_issue_key = "customfield_cte"
dimension = true

[jira.customfield_cte]
name = "CTE"
inward_link = "is contained in"
issue_type = "CTE"
update_from_issue_key = "epic_key"
dimension = true

Code for “leaf1_ToDo”

CASE
WHEN

IIf(

        IsEmpty(ExtractString([Measures].[Issue type],  'CTE'))
        ,
        0,
        iif(

                IsEmpty(ExtractString([Measures].[status_category],  'To Do'))

                ,
                CBool(0),
                CBool(1)
        )
)
THEN 1
END

Code for Count_in_root_ToDo

NonZero(
        Count(
                Filter(
                        Descendants([Issue].CurrentHierarchyMember.GetLinkedMember('INIT')),


                        IIf(
                                IsEmpty(ExtractString([Measures].[Issue type], 'CTE'))
                                ,
                                0,
                                iif(
                                        IsEmpty(ExtractString([Measures].[status_category], 'To Do'))

                                        ,
                                        CBool(0),
                                        CBool(1)
                                )
                        )
                )
        )
)

[cybertachikoma]

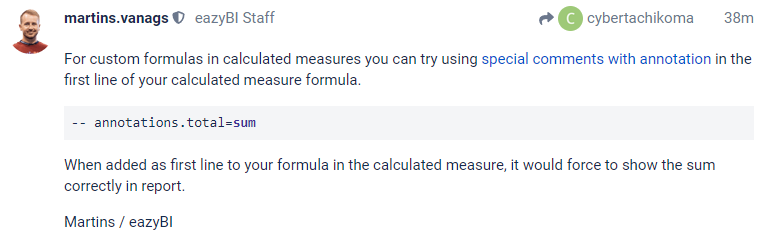

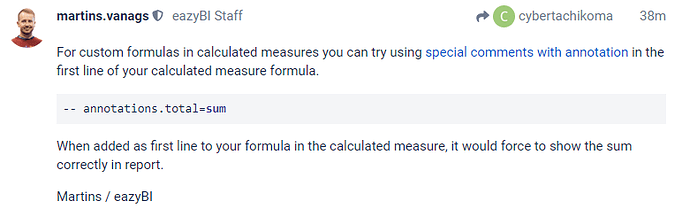

There’s an idea from Team:

I’ve tried code below, but nothing changed.

--annotations.total=sum

NonZero(
        Count(
                Filter(
                        Descendants([Issue].CurrentHierarchyMember.GetLinkedMember('INIT')),


                        IIf(
                                IsEmpty(ExtractString([Measures].[Issue type], 'CTE'))
                                ,
                                0,
                                iif(
                                        IsEmpty(ExtractString([Measures].[status_category], 'To Do'))

                                        ,
                                        CBool(0),
                                        CBool(1)
                                )
                        )
                )
        )
)

[roberts.cacus]

Hi @cybertachikoma,

The total calculation gets confused when expanding the various Issue dimension hierarchy levels. Instead, I recommend filtering the report in the report pages to display only the desired issues with other dimensions. And use the “All” level of the Issue dimension to display the totals.

I recommend replacing the calculation for returning the number of child issues of a specific type and in a particular status category with a tuple. The formula could look similar to the one below:

([Measures].[Issues created],
[Issue Type].[CTE],
[Status.Category].[To Do])

See an example with “Story” type issues in the picture below:

We have a bug regarding the total calculation behavior with the row dimension hierarchy levels in our backlog. I added your vote to it. Unfortunately, I don’t have any estimates. We will update this post once there are any developments.

Best,
Roberts // support@eazybi.com

[cybertachikoma]

Hi,
your solution works good (both with “Total” or “All”)

More than that - It helped me to realize a concept, how to make “SELECT from” in EB.
Now I can add next filters, by labels for example.

(
[Measures].[Issues created],
[Issue Type].[CTE],
[Status.Category].[To Do],
[Label].[label0]
)

Thank you a lot.
