Return the priority of a feature but display next to story

Questions & Answers
1

Hi,

I am looking to create a report which returns the priority of the features but shows the progress of the stories

I have managed to create a chart which shows the features vs their story progress however adding a priority column just returns the priority of story.

I need to create a calculated measure to show this

2

Hi @Kaitlin_Martin,

Thanks for posting your question!

To create a report that shows the priority of features alongside story progress, you’ll need to set up a custom issue link field dimension that pulls the priority from the parent feature. Here’s how to do it:

Step 1: Configure Advanced Settings

Add the following configuration to your advanced settings:

[[jira.issue_link_field_dimensions]]
name = "Feature Priority"
source_dimension = "Priority"
issue_key_column = "jpoh_parent_3"
group = "Linked issue dimensions"

Note: jpoh_parent_3 means that Feature is 3 levels from “Story”. If your hierarchy has more levels, adjust this accordingly. My colleague Gerda is explaining these levels in this community post: Issue link field dimensions don't include parent issue

Step 2: Import the New Dimension

Go to Source Data → Edit

  1. Navigate to the Additional options tab

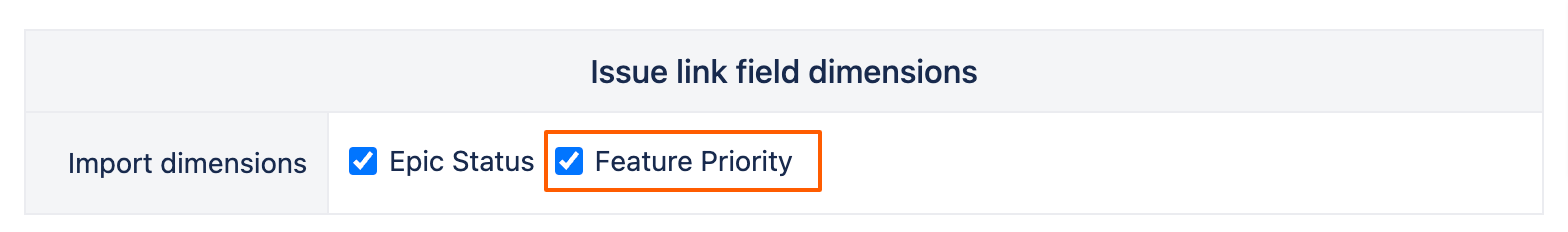

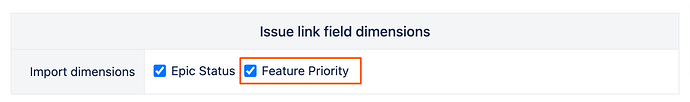

  2. Under Issue link field dimensions, select “Feature Priority”

1568×232 13.7 KB

  1. Run import

Step 3: Create Your Report

Now you can create a report by:

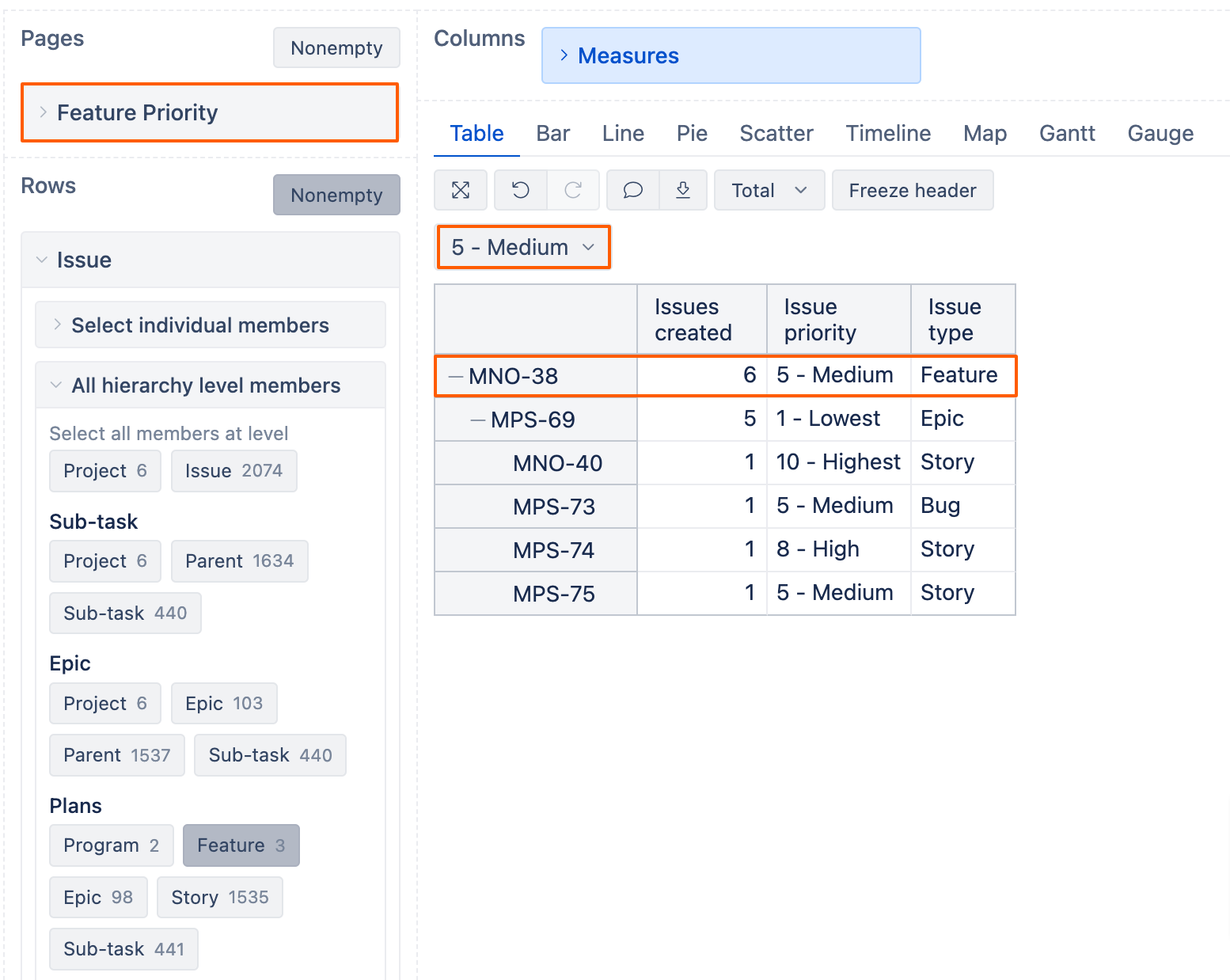

  • Using the Issue dimension in Rows. Select the “Feature” level member

  • Adding your newly imported “Feature Priority” dimension in Pages

1554×1238 119 KB

This approach allows you to filter or display by the priority of the Feature regardless of the priorities assigned to individual stories.

For displaying progress as a percentage, you could use a stacked bar chart with the percentage option enabled, similar to the “Version progress %” sample report.

See Version progress % documentation

Best,
Marita from support@eazybi.com
